Machining on Lathe

Lathe Booking Time: 3 Hrs

Max CMF Points Earned: 350

Lathe Machine

Learn basic introduction about Lathe Machine before performing any operation.

Motor Coupler Shaft

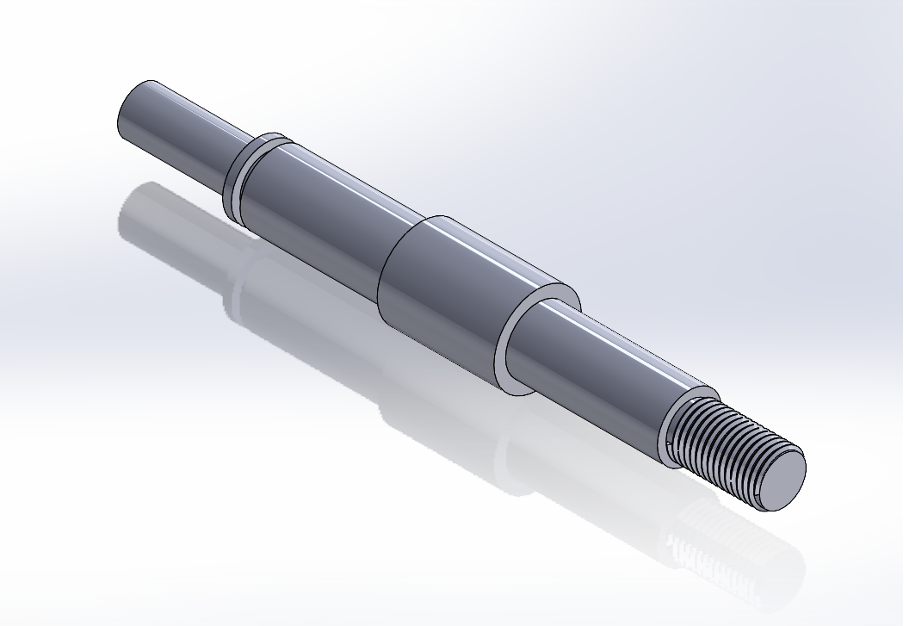

This is Mild Steel Shaft For Robot Wheel. It is used with Bearing Housing for the purpose of smooth power transmission between the motor and the HD wheel of your robot.

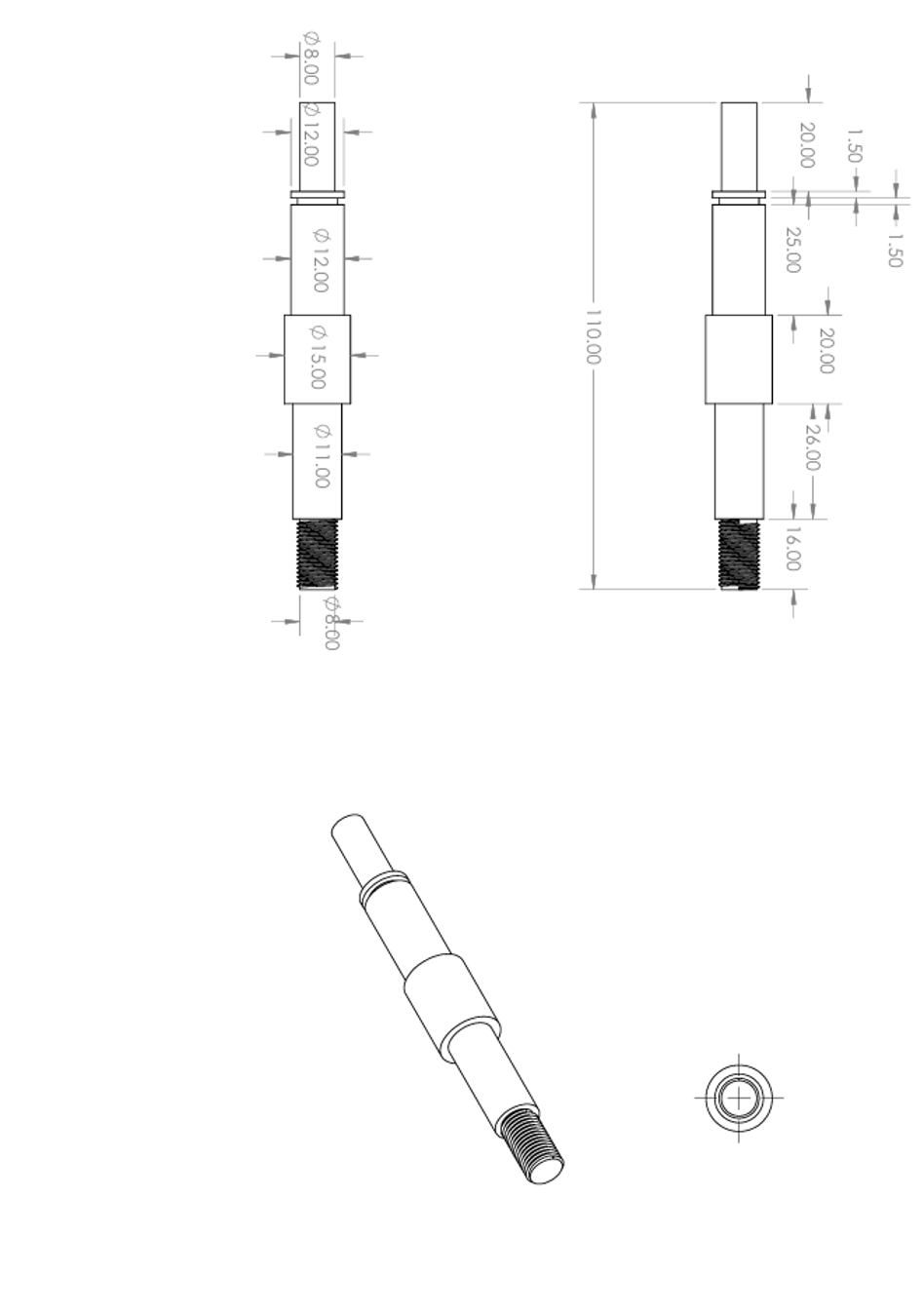

Download Part Drawing

Process Sheet

Step-0: Material Required

1. Mild Steel Cylindrical Rod 20 mm dia, 150 mm length
2. Single point cutting tool (HSS)

Step-1: Machine and workpiece set up

Step-2: Facing the Stock piece

Step-3: Straight Turning

Reduce diameter from 20 mm to 15 mm

Step-4: Straight Turning

Reduce diameter from 15 mm to 8 mm

Step-5: Straight Turning

Reduce diameter from 15 mm to 12 mm

Step-6: Groove Cutting

Grooving of the w/p from 12mm dia. to 9mm dia.

Step-7: Straight Turning

Reduce diameter from 15 mm to 11 mm

Step-8: Straight Turning

Reduce diameter from 15 mm to 8 mm

Step-9: Threading

M8 threading using tapping die

Learning Outcomes

• Proper use of marking and hand tools
• Workpiece alignment
• How the feed and depth of cut are provided
• Facing
• Turning
• Step turning
• Grooving
• Threading
