Automatic Solar Panel Cleaning System
Brief Description and Functionality
The Automatic Solar Panel Cleaning System is an automated mechanism designed to remove dust, dirt, and other surface contaminants from solar photovoltaic (PV) panels without requiring frequent manual cleaning. Dust accumulation on solar panels reduces the amount of sunlight reaching the photovoltaic cells, thereby decreasing their power generation efficiency.
Various cleaning mechanisms can be used in automatic solar panel cleaning systems depending on the panel size, installation environment, cost, and required cleaning efficiency. Rotating brush systems use motor-driven cylindrical brushes made of soft nylon or microfiber to remove dust and loose particles from the panel surface. They provide effective cleaning but require careful control of brush pressure to avoid scratching the panel.
Wiper or squeegee mechanisms use a rubber or soft wiping blade that moves linearly across the panel. They are simple, lightweight, and suitable for removing fine dust and moisture, although they may be less effective against strongly adhered dirt.
Air-blowing systems use compressed air or high-speed fans to remove loose dust without physical contact. These systems reduce the risk of surface damage but may require higher power and are less effective against sticky contaminants.

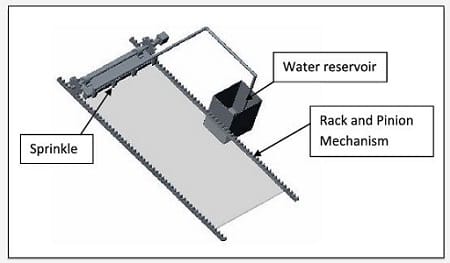

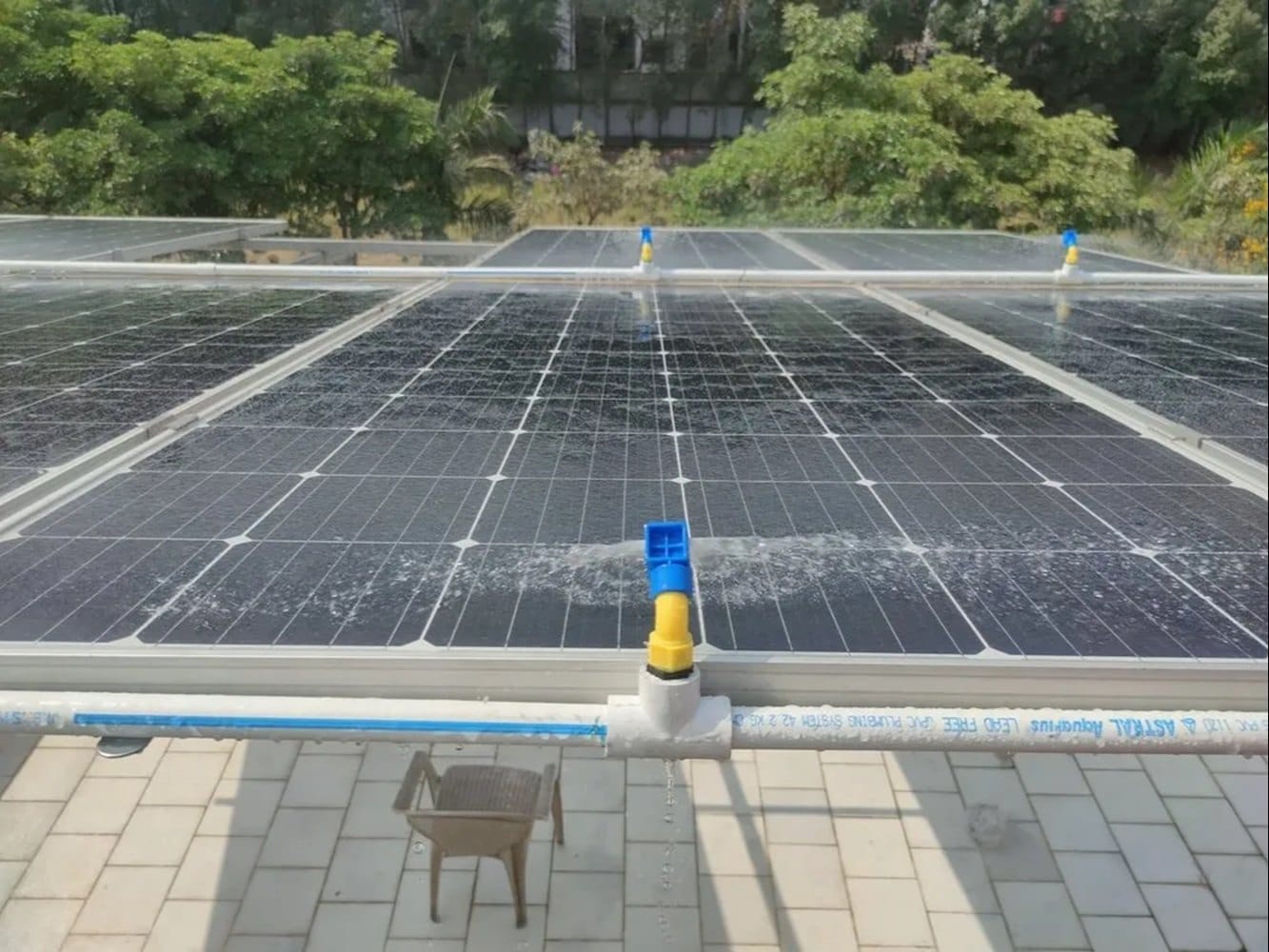

Water-based cleaning systems spray water through nozzles while a brush or wiper removes the accumulated dirt. They provide effective cleaning but require water supply and drainage arrangements.
Electrostatic and vibration-based systems can remove dust with minimal or no direct contact. Electrostatic cleaning uses electric fields to repel dust particles, while vibration-based systems mechanically dislodge accumulated dust. For low-cost applications, a motorized rotating brush or wiper mechanism is generally a practical choice due to its simplicity, reliability, and ease of automation.
