20251ME8: Hand-Powered Portable Washing Machine

Last updated on 27 Jul 2025

Brief Description and Functionality

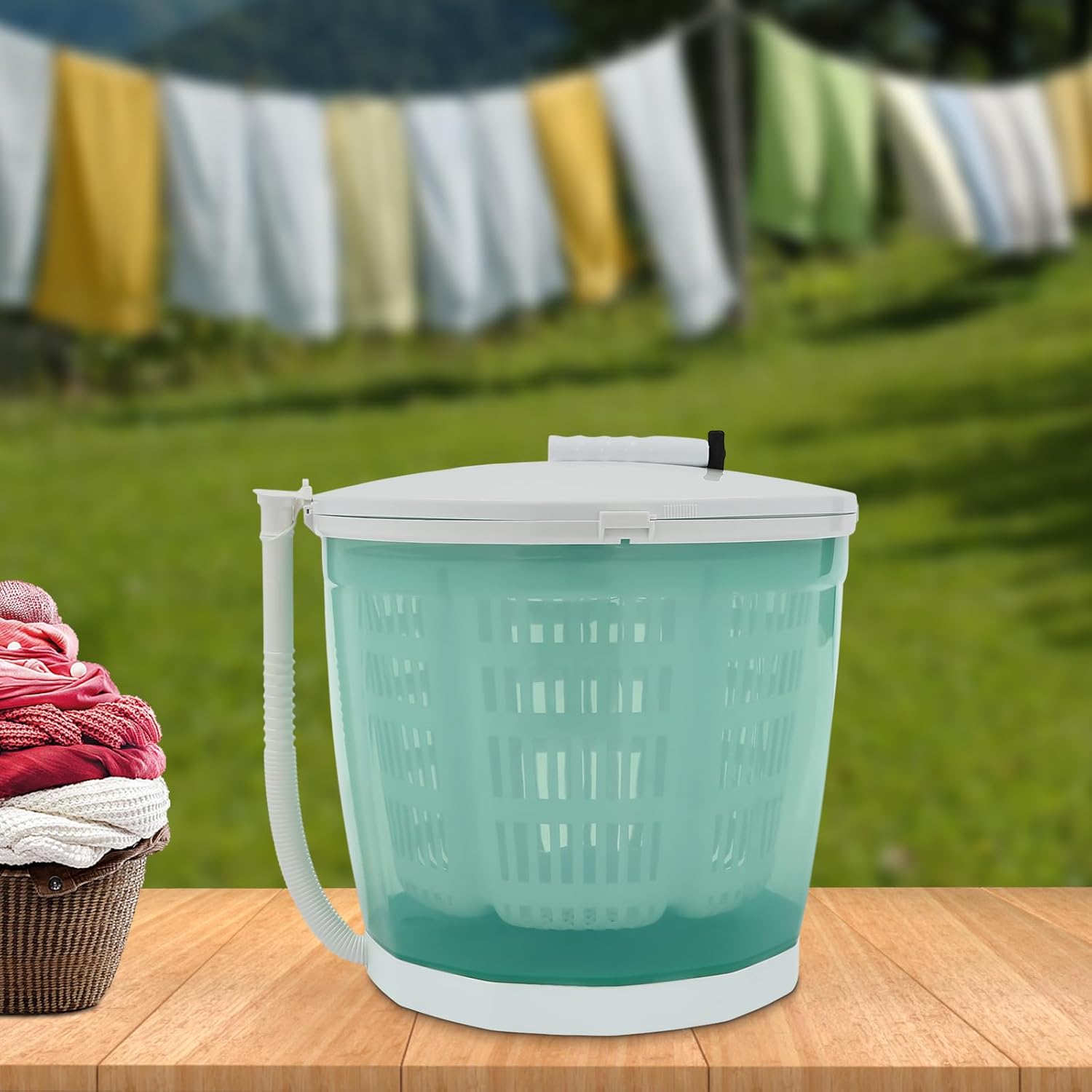

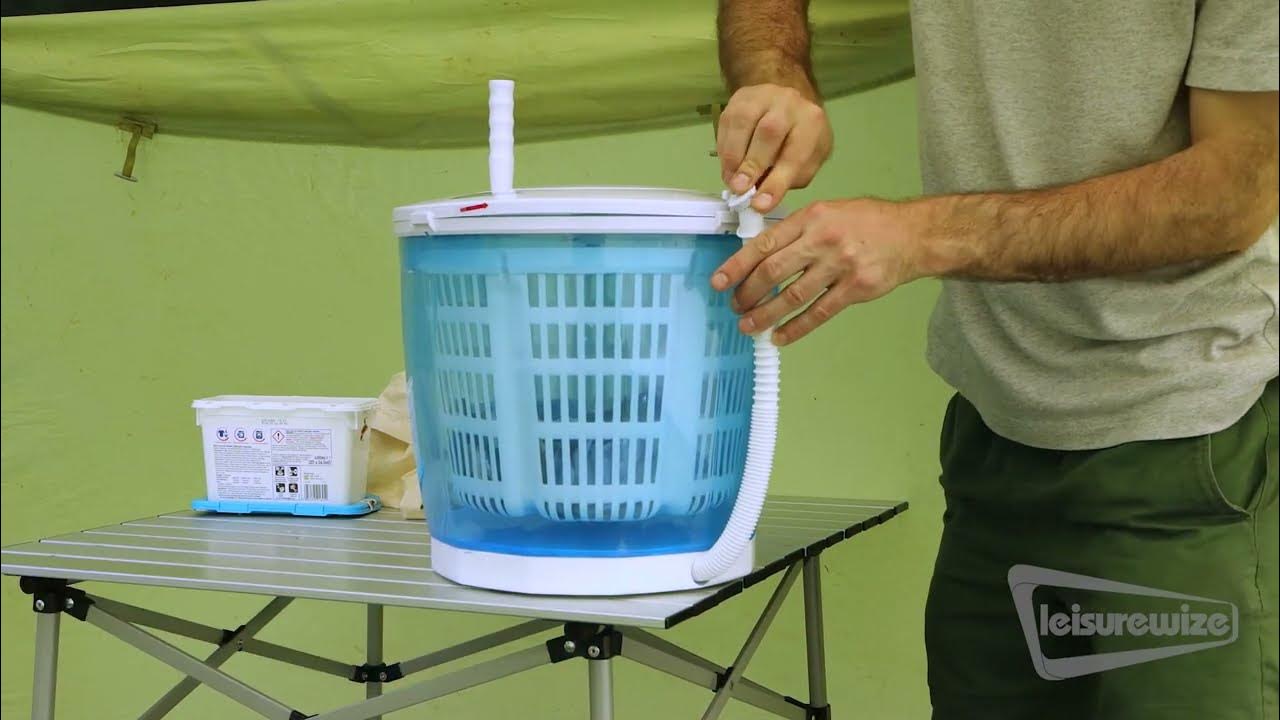

The Hand-Powered Clothes Washer is a manually operated washing device designed for small-scale laundry needs. It consists of a turbine-like agitator attached to a hand crank, which, when rotated, generates a swirling motion in the water to mimic the agitation action of a washing machine. The device is lightweight, portable, and operates without electricity, making it ideal for areas with limited resources or during travel.

Applications

Low-income households with limited access to electric washing machines
Hostel students or individuals living in temporary accommodations
Travel kits for camping or emergency situations
Promotes water and energy conservation while ensuring effective cleaning.

Working

The hand-powered washer operates on a simple mechanical system that converts manual rotational force into agitation movement for cleaning clothes.

1. Core Components Involved

Drum or Container: Holds water and laundry.
Agitator/Turbine: A central rotating mechanism that stirs the water.

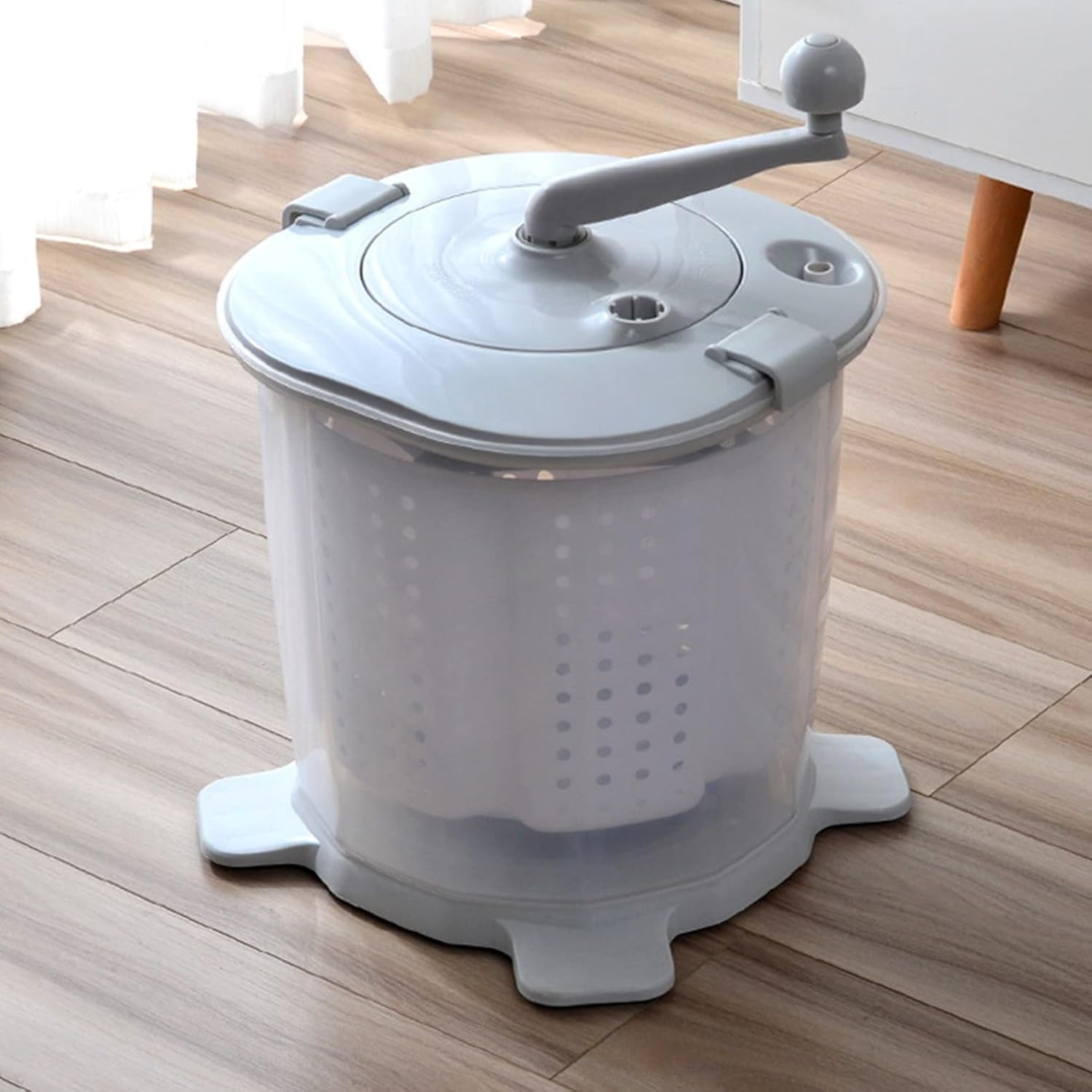

Hand Crank: Operated by the user to generate motion.
Crankshaft & Gear Assembly (optional): Converts hand motion to rotary movement.
Lid with Seal: Ensures watertight closure during operation.

2. Mechanical Motion Conversion

When the user turns the hand crank, the rotational motion is transferred via a crankshaft to the agitator at the bottom or center of the drum.
This agitator is turbine-shaped or paddle-based, designed to displace water and generate turbulence.

3. Agitation Process

The agitator rotates and creates a swirling or back-and-forth water movement inside the drum.
This agitation mimics the action in electric washers, causing clothes to rub against each other and the water effectively loosening dirt and stains.

4. Cycle Repetition

The washing action can be maintained for several minutes depending on how long the crank is operated.
The process can be repeated with clean water for rinsing.
