CNC Milling on VMC
Duration: 3 Hrs
Training Points: 400 Pts.
Facility to Book: CNC Milling Machine
CNC Milling of Bearing Mount
Step:01 Understanding the Part

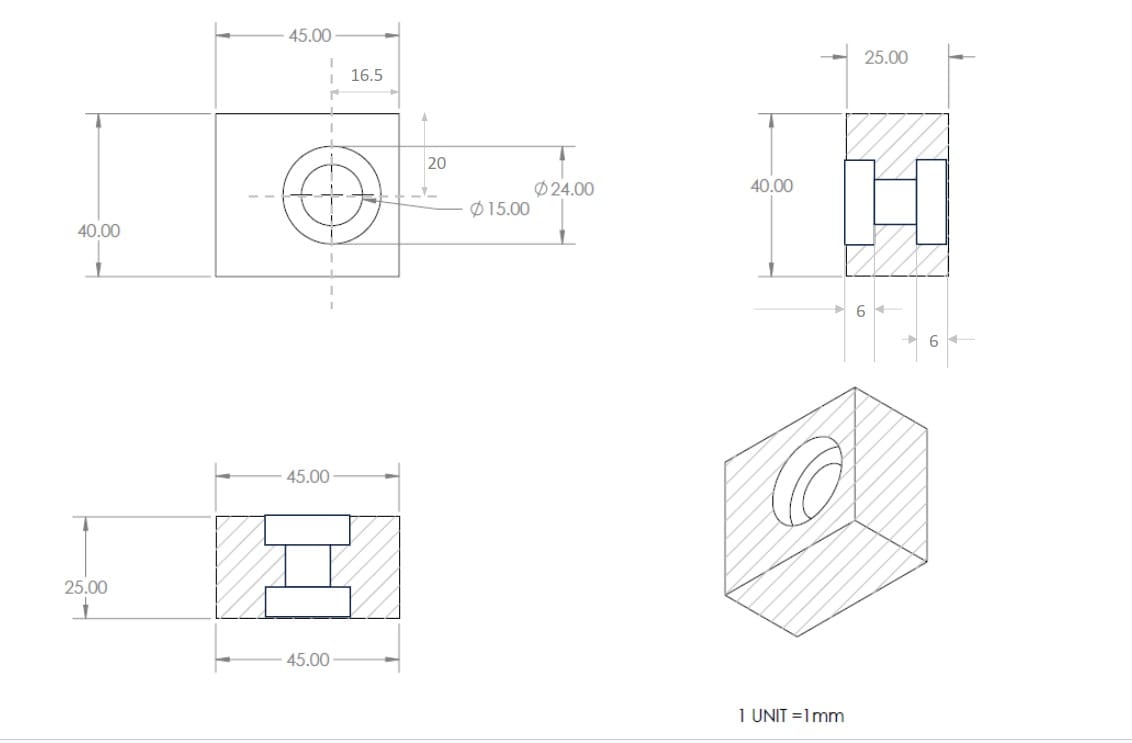

The part to be machined is a bearing mount (as shown in Fig. above) with following features:
- Overall size: 45× 40 × 25 mm
- Through slot and pockets as shown in the drawing
- Central through holes (Ø15 and Ø24 counterbore)
Step: 02 Create the CAD Model in Autodesk Inventor or Fusion 360
Steps involved in CAD Design can be seen in the link.
Step:03 Generating CNC Codes using Autodesk Inventor
Process Sheet For CNC Milling
Steps for Operating CNC Milling

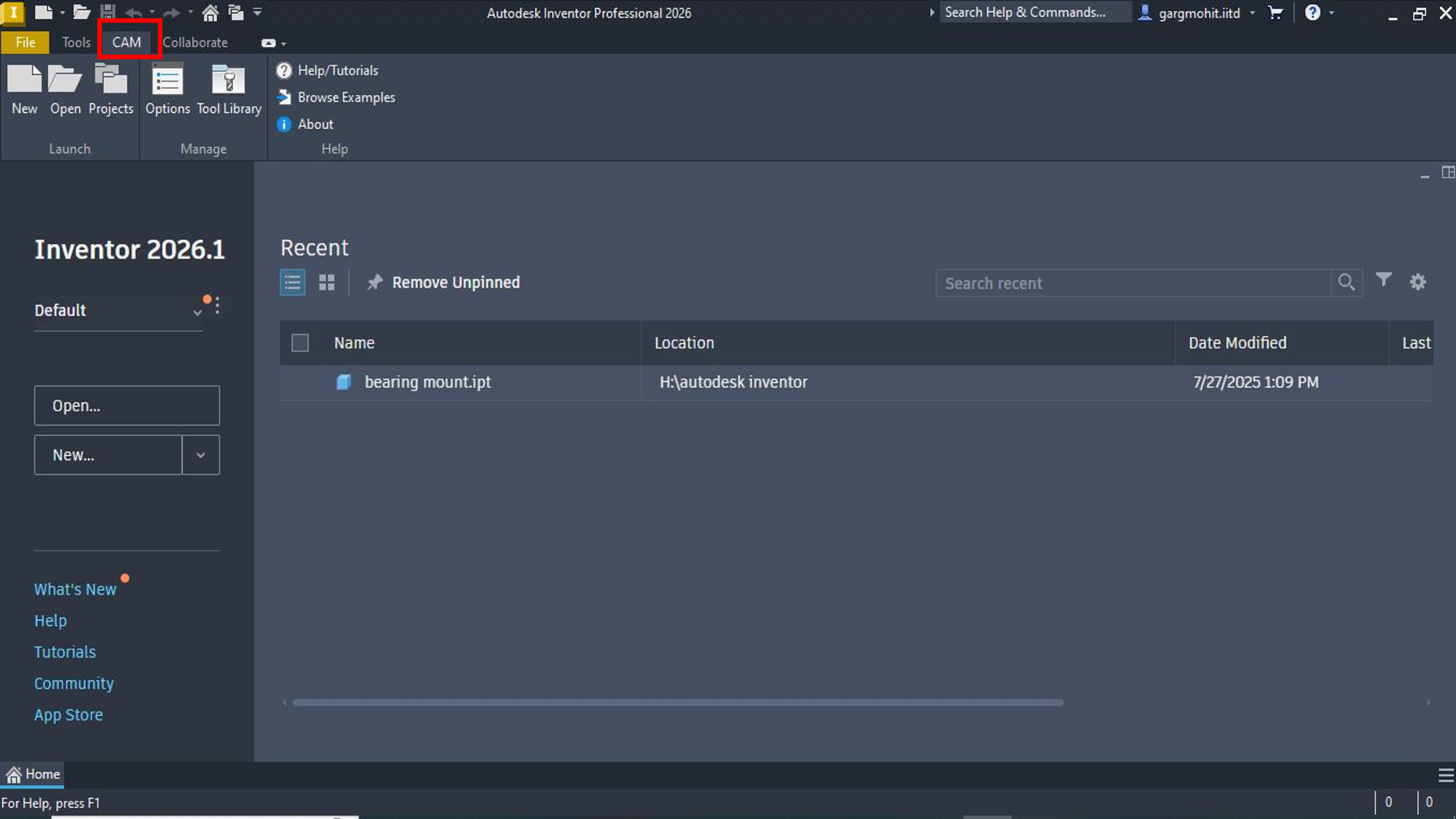

a) Open Autodesk Inventor and select the CAM environment. (If the option doesn't appear, please check for Inventor CAM add in or install Inventor CAM).
b) Select the file containing the CAD model for generating CNC codes.

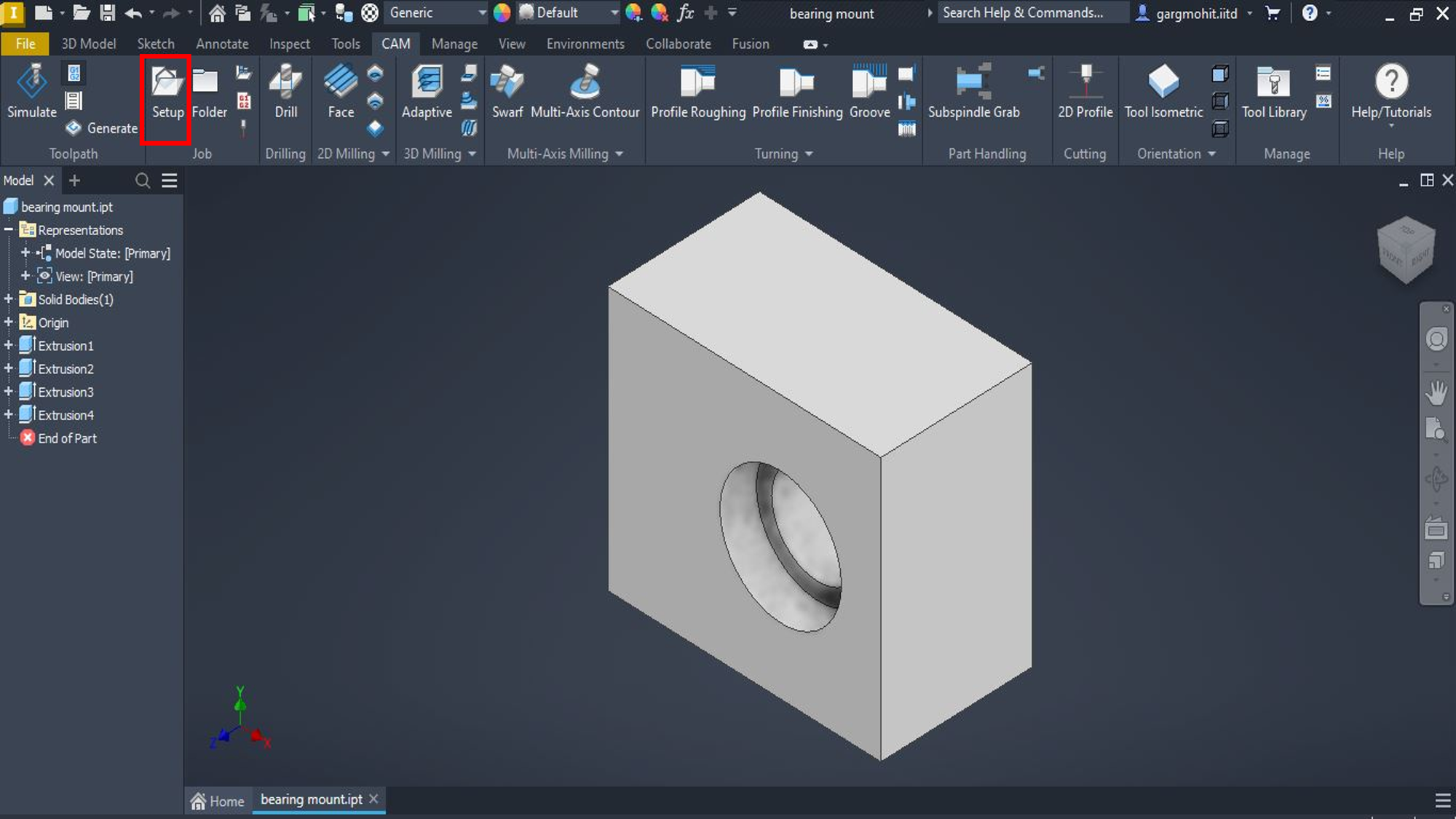

c) After the part is loaded in CAM environment, select the setup option for initializing the settings

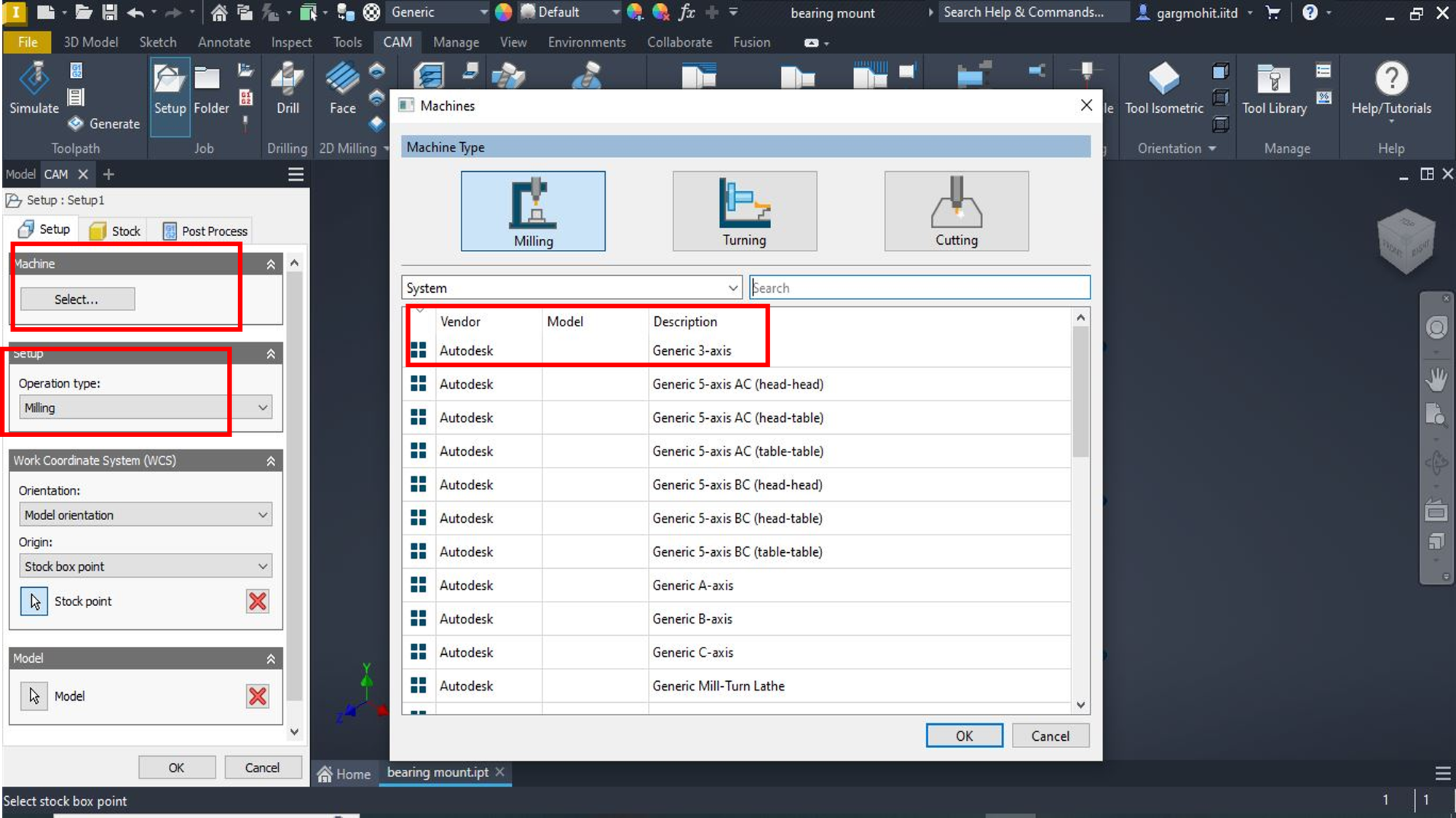

d) Select the machine type and operation type

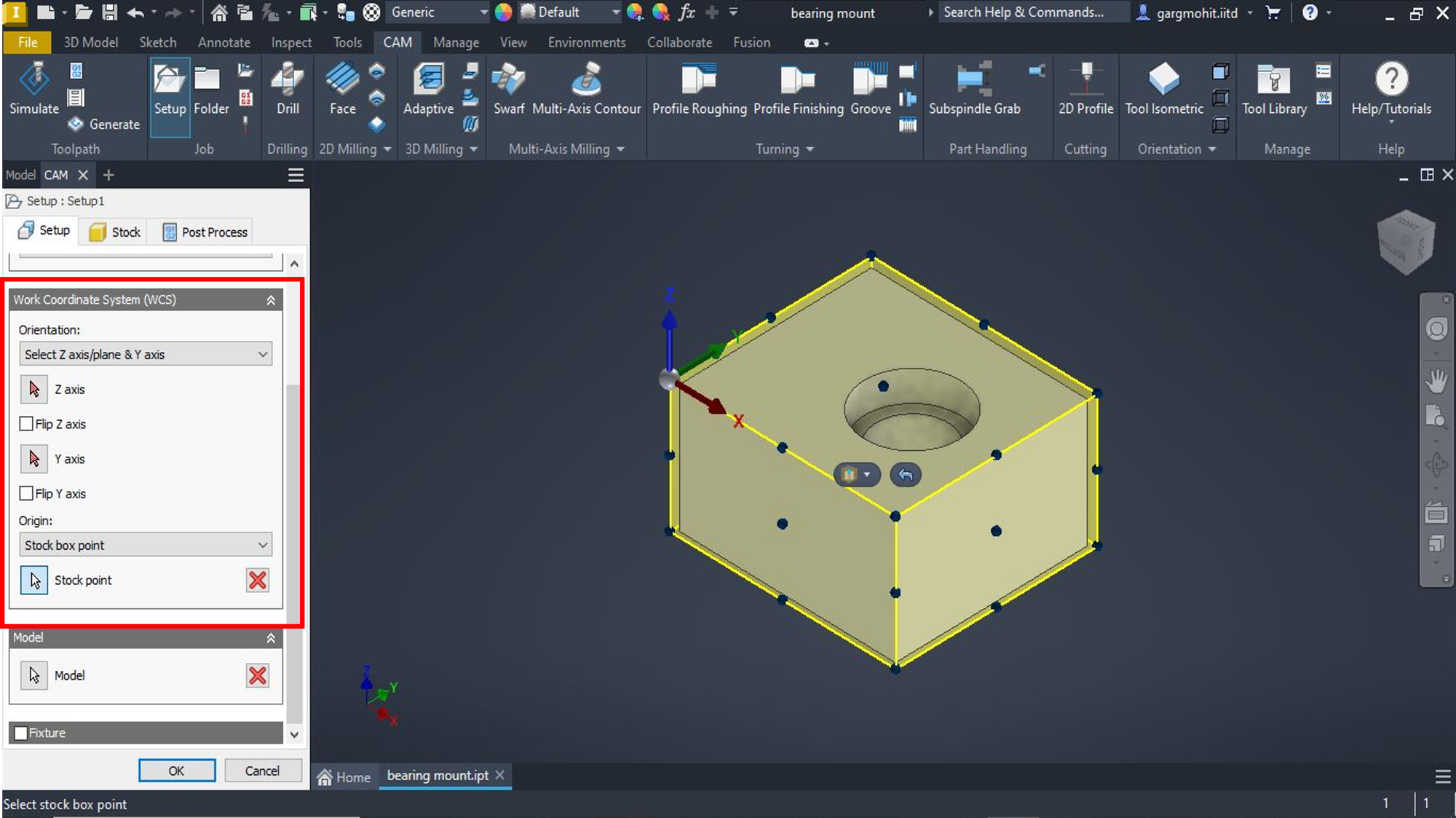

e) Select the coordinate system and stock point

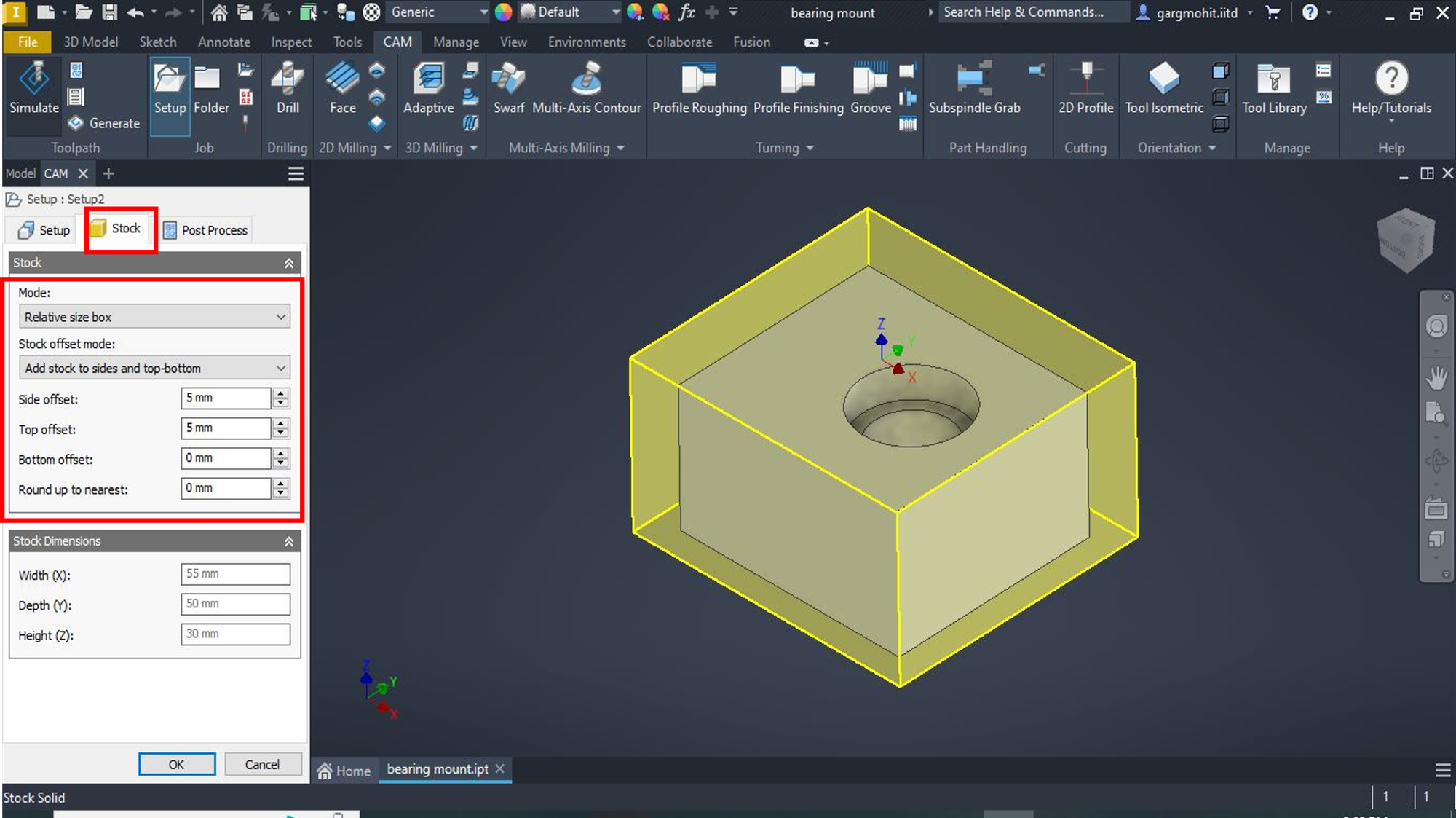

f) Select the stock option to give the dimensions of the work-piece. The dimensions of the stock is kept a bit larger than than actual dimensions required.
Step: 01 Design of part, generation of codes and simulation.
Step: 02 Machine and workpiece set up and referencing.
Step: 03 Face milling operation to properly flatten the top surface.
Step: 04 End milling operation for coarse cutting and finishing the sides of block as per dimensions.
Step: 05 Drill 15 mm through hole on the block.
Step:06 End milling for counter bore the diameter from 15 mm to 24 mm to a depth of 6 mm on both sides of block
Programing Of the Component is given below
G54
T2D1M06
S1500M03
G00X0Y0Z5F150
G01Z-2
G01X5Y0
G02
G02X5Y0CR5
G01Z-8
G01X5Y0
G01X-5Y0CR5
G02X5Y0CR5
G01Z-10
G01X5Y0
G01X-5Y0CR5
GO2X5Y0CR5
G00Z30
M30

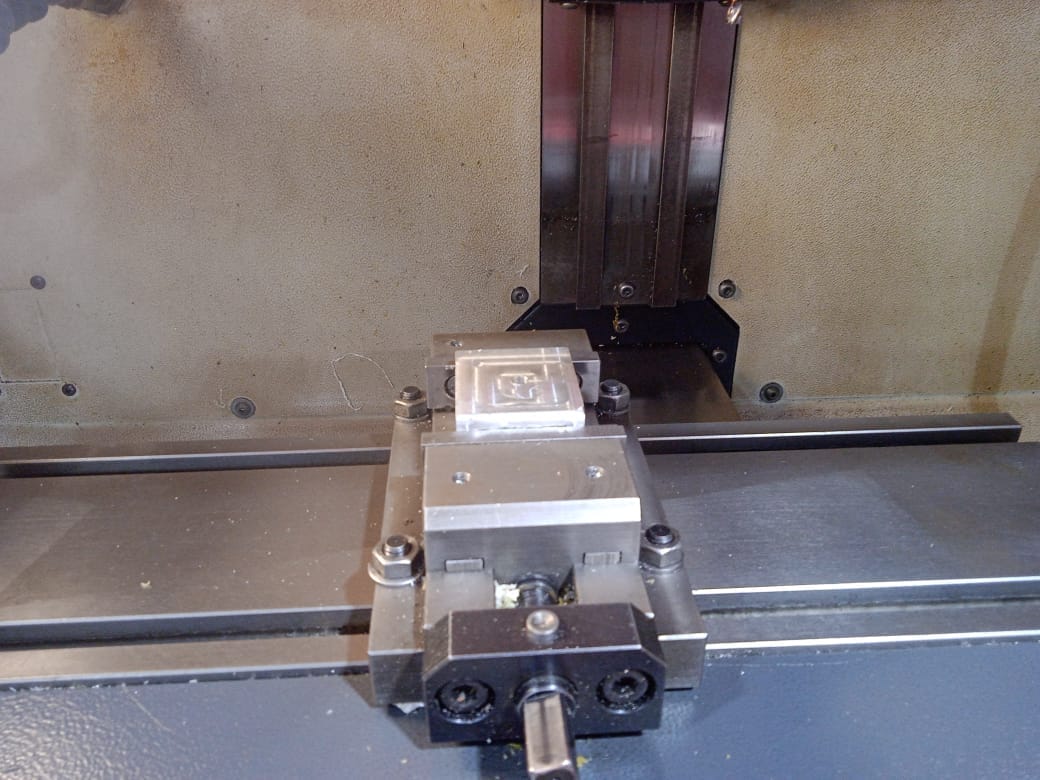

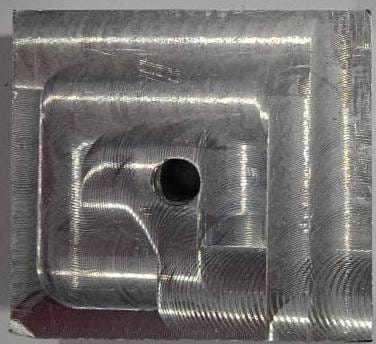

Work piece is set up for Operation on CNC Milling Machine
Series of Bearing :6001 ZZ
OD of this Bearing : 28mm
ID of Bearing: 12mm
Width of Bearing :8mm
Learning outcome:
Designing and generation of codes
· Workpiece alignment
· How to use CNC milling machine?
· Programming
