Brief Description and Functionality

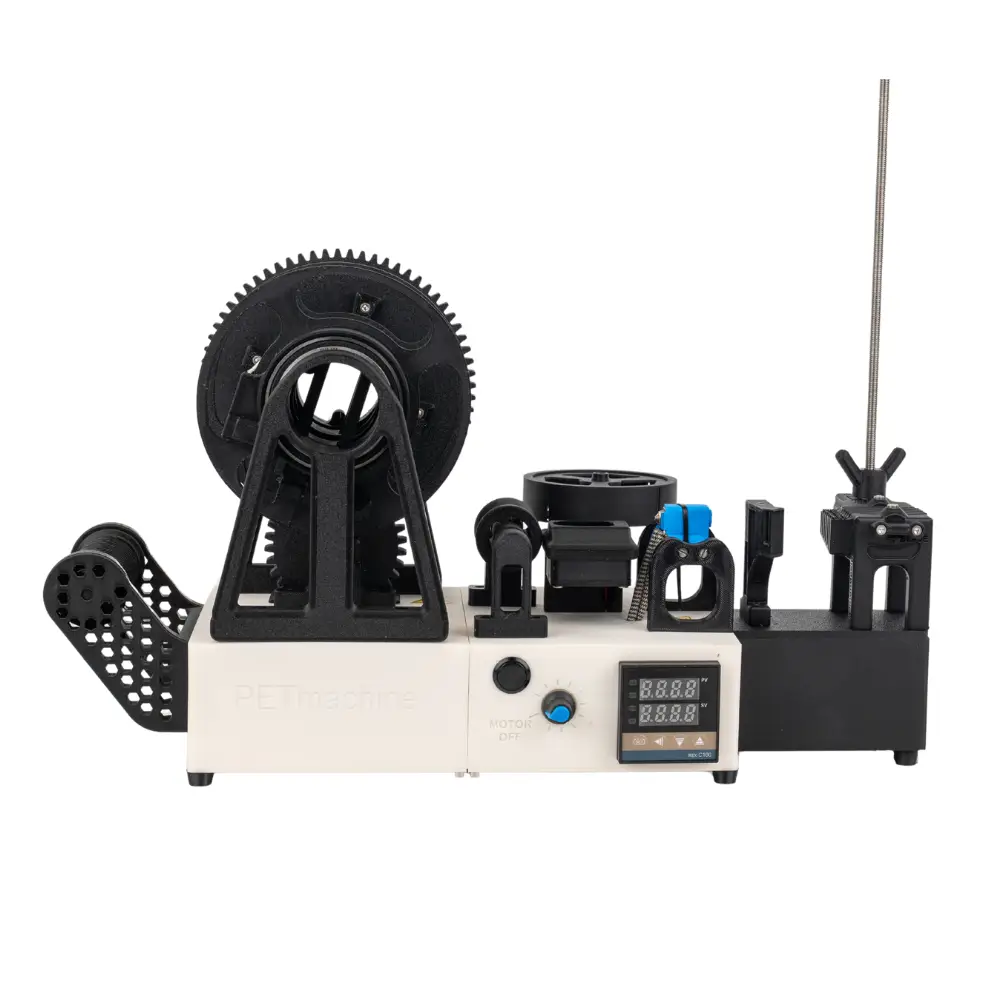

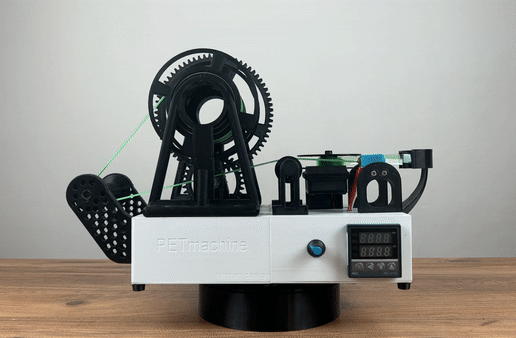

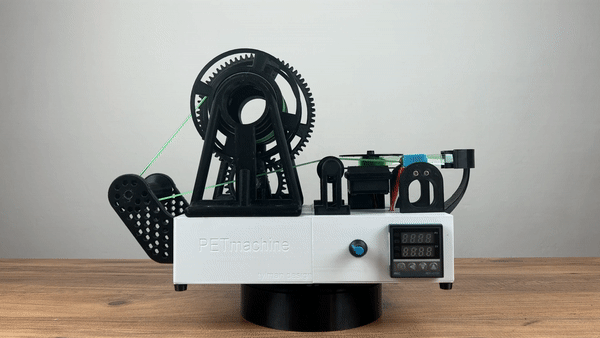

A PET bottle filament maker is a mechanical and thermal apparatus engineered for the purpose of recycling used PET plastic bottles into filament suitable for 3D printing applications. The process involves changing plastic from bottles into long, even strands (filament) that can be rolled onto spools for later use in Fused Deposition Modeling (FDM) 3D printers.
System Overview
A typical PET bottle filament maker consists of the following stages of manufacturing:
Bottle Preparation
Cutting/Shredding Mechanism
Filament Extruder
Filament Cooling System
Spooling System
Control System
Bottle Preparation
Function: Prepare PET bottles for filament conversion.
How It Works:
A. Labels and caps are removed.
B. Bottles are cleaned to remove dirt, oil, or adhesive residue.
C. Bottles may be flattened or slit for easier processing.
Cutting/Shredding
Two approaches:
Strip Cutter: Cuts bottles into long thin ribbons (2–5 mm wide).
Uses a rotating blade or heated cutter.
Simpler and used for "direct draw" systems.
Granulator: Chops bottles into small flakes.
Required for systems with full extrusion (pellet-based feeding).
Extrusion Unit (Heater + Nozzle)
Core Principle: Thermoplastic extrusion.
Function: Melt and extrude PET into a filament.
Main Parts:
A. Hopper: Feeds PET strips/flakes.
B. Auger/Screw: Pushes material forward.
C. Heater Zones: Melts plastic (PET melts around 250°C).
D. Extrusion Nozzle: Shapes molten PET into a uniform circular cross- section (typically 1.75 mm or 2.85 mm diameter).
Filament Cooling System
Function: Solidify molten PET filament immediately after extrusion.
How It Works:
The process utilizes either air cooling fans or a water bath.
Controlled cooling avoids warping or bubbles.
PET is prone to crystallization — needs consistent, rapid cooling.
Spooling System
Function: Wind the cooled filament onto a spool.
How It Works:
The motorized spool rotates at a controlled speed.
Uses sensors to maintain tension and alignment.
A traversing guide may be included to ensure even layering.
Thermal and Material Considerations
Parameter
Value / Notes
Melting Temp (PET)
~250°C
Drying Needed
Yes – PET absorbs moisture (must be pre-dried)
Cooling Sensitivity
High – must avoid crystallization
Diameter Tolerance
±0.05 mm (for good print quality)
Block Diagram
PET Bottle → Strip Cutter/Granulator → Hopper → Heater + Screw Extruder → Nozzle → Cooling System → Spool Winder
Control System
A microcontroller (e.g., Arduino, ESP32, or Raspberry Pi) may:
Regulate temperature via thermocouples and PID control.
Control motor speed (extruder & spooling).
Interface with a small LCD/UI for user settings.
Advantages of PET Bottle Filament Maker
Recycles plastic waste into usable material.
Cost-effective filament production.
Encourages circular economy and sustainability.
Challenges
PET needs to be dry to prevent bubbles during extrusion.
Maintaining consistent filament diameter is tricky.
Color and purity of bottles affect final filament quality.
Requires thermal stability and mechanical precision.
