20251GTY6: Game Console using ESP32

Last updated on

Brief Introduction & Functionality

ESP32 game consoles are small, programmable devices that employ an ESP32 microcontroller to enable users to play customized or antique games. The console can run unique games or imitate a variety of old games owing to its physical buttons, color display, audio output, and SD card or flash storage.

Applications

  • Personal and Educational Gaming
  • Embedded Systems Learning Platform
  • Open-Source Game Development
  • Portable Entertainment Device

Working Principle

The ESP32 game console is engineered for portable gaming and efficient hardware-software integration.

1. Main Controller and Structure

  • Uses a powerful but compact ESP32 microcontroller module, enabling game logic, display control, audio processing, and input management.
  • Mounted inside a 3D printed or laser-cut enclosure providing ergonomic handling and protection.

2. Display System

  • A color TFT or OLED display (1.8–2.8 inch, SPI/I2C interface) presents game graphics.
  • Wired to ESP32 with high refresh rate support.

3. Game Controls/Input

  • D-Pad and action buttons (plus Start/Select, optional joystick) are wired to ESP32 GPIOs.
  • Debounced via software or simple hardware for precise input detection.

4. Storage and Loading

  • SD Card slot for game files (ROMs, assets, saves) or integrated SPI flash.
  • Games selected via an on-screen menu system.

5. Power Supply

  • Rechargeable LiPo battery with charging circuit (e.g., TP4056) or replaceable AAA batteries.
  • Power switch, battery level monitoring, and USB charging.

6. Programming and Control

  • Firmware supports emulation (NES, Game Boy, Sega) or custom games .
  • Menu for settings, game selection, and save/load states.

Flow chart of the fabrication steps

  • CAD Design : For 3D enclouser
  • PCB Development : Developing the PCB design as per requirement
  • PCB Fabrication: Milling the design & Fabrication by Soldering
  • ESP32 Programming
  • Testing & Debugging : Verifying the function & fixing if any
  • Final Adjustment & Enclosure : 3d Printing the enclosre

Useful Resources

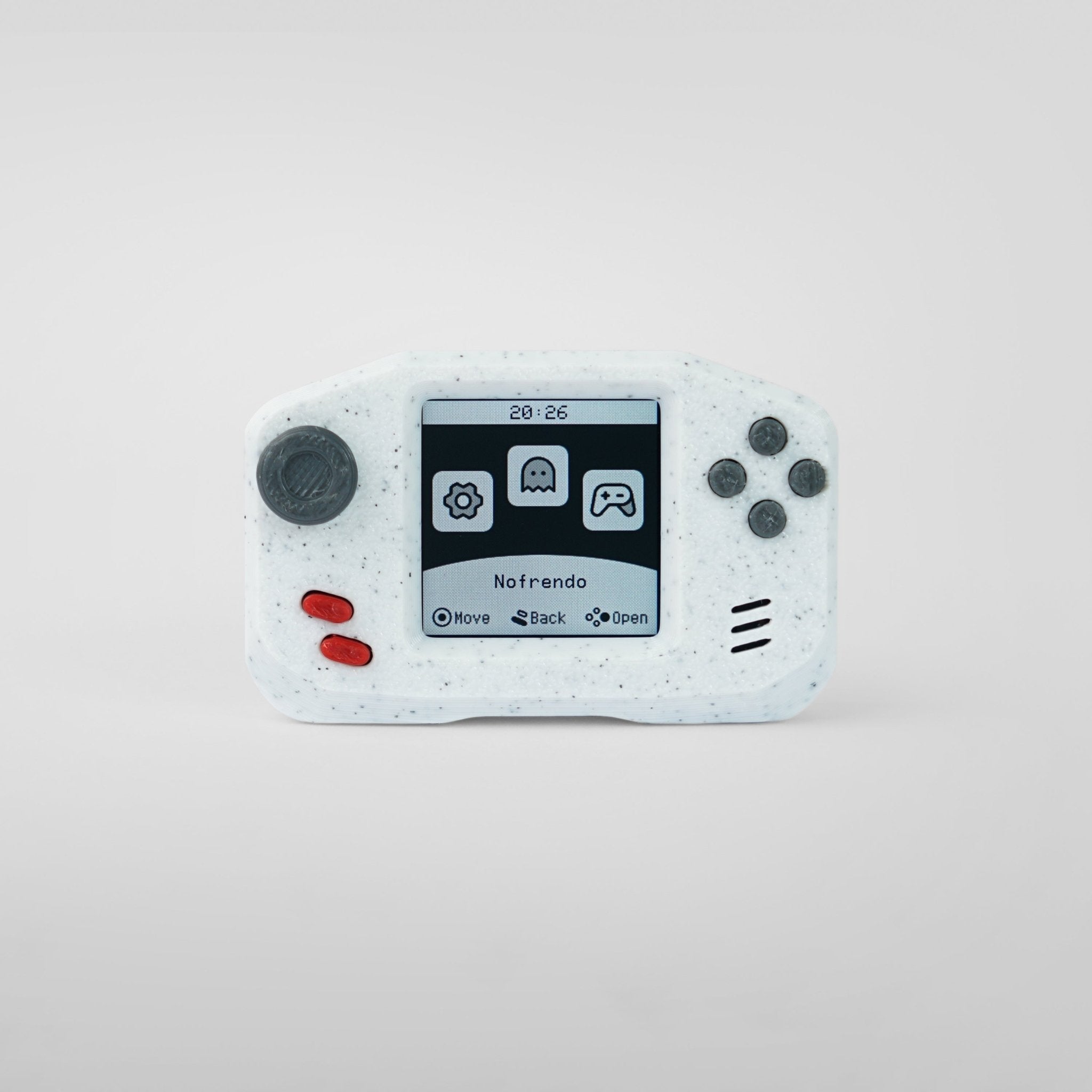

Compact Retro Thumb Game Console Finger Pocket Player with ESP32-S3FN8
